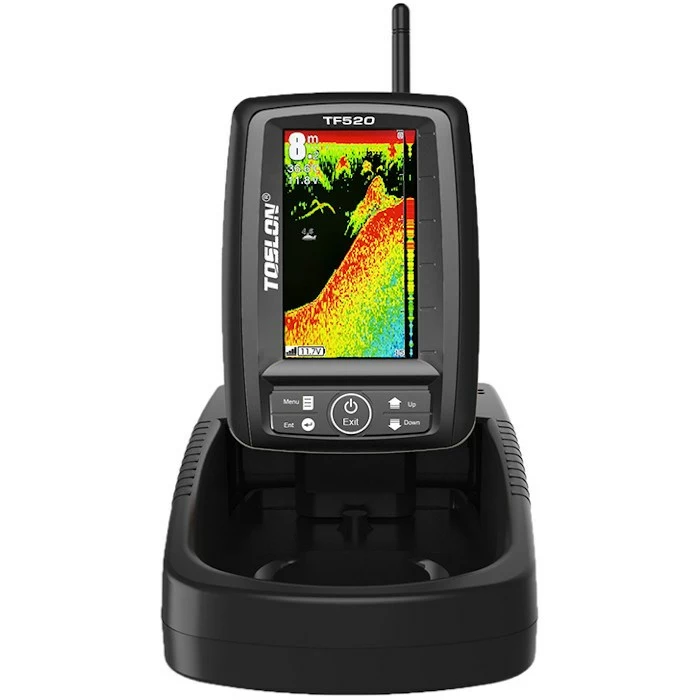

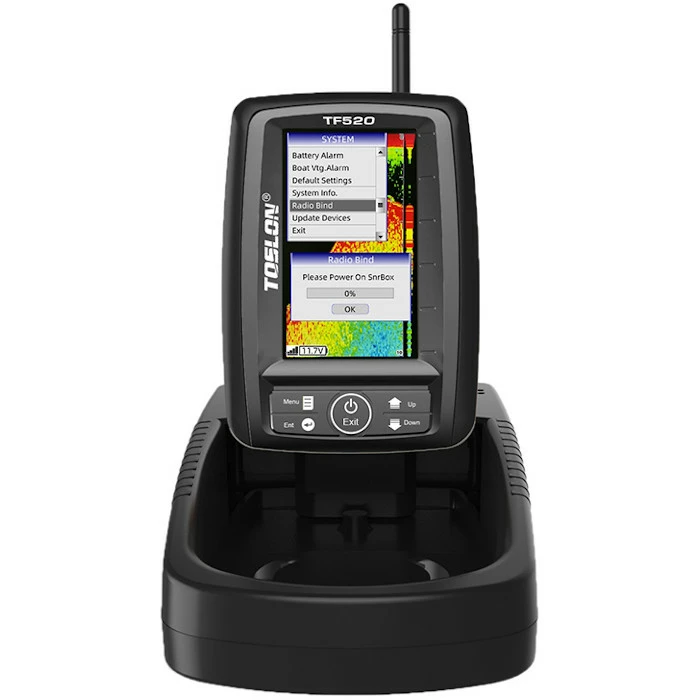

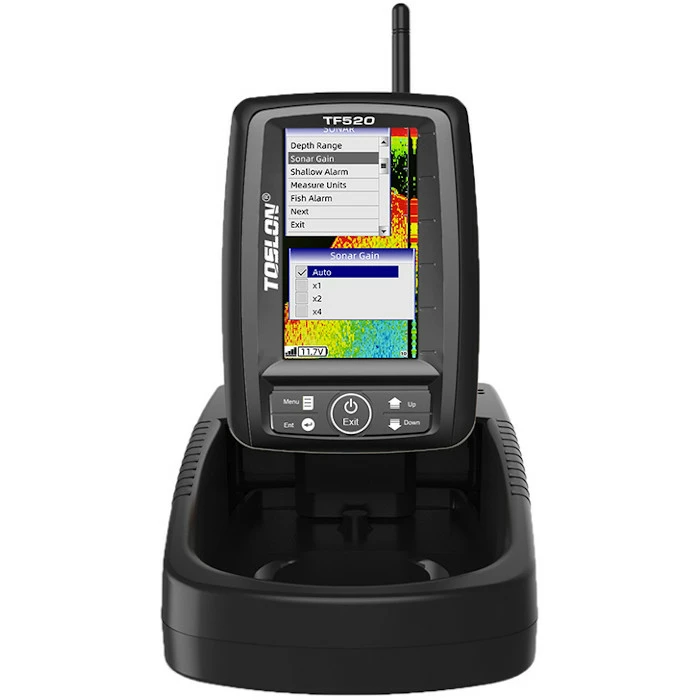

Toslon Marine Toslon TF520 Feature Finder

The Toslon TF520 feature finder, released by Toslon as a direct replacement for the popular best-selling TF500 model. Carrying a number of upgrades and improvements on the original design, including improved higher gain sonar technology bringing you more detail and clarity to your images than ever before. Offering a view of the topography of the swim, and the fish in it, to depths of up to 30m. All outputted onto a 4.3 Inch TFT screen capable of displaying over 65,536 colours helping you get an accurate picture of the swim your in, even in bright sunlight. An ideal upgrade for your bait boat, taking any guesswork out of your rig and bait placement.

Features

• Wireless digital echo sounder
• Multi-language menu (including English)
• Sensor Cable Length: 50cm
• IPX6 Level Waterproof Casing Design
• Water Temp. Included in Transducer
• Frequency-hopping spread spectrum (FHSS)
• Direct-sequence spread spectrum (DSSS)
• Hardware gain adjustable
• Built in 3S lithium battery charging function
• Stable wireless performance even in bad condition
• Monitor and Display Real-time Voltage of Bait boat Battery
• Sonar Alarms: Fish / Shallow / Low Battery
• Real-time display (no time lag between what the echo picks up and what is displayed on the screen)
• Colour Line technology allows for easy reading of fish and bottom structure (easily identifiable bottom hardness)
• Depth is indicated above each fish symbol
• Sonar alarm: fish, high bottom and low battery (boat battery and echo sounder battery)
• Depth sounder battery level and boat battery level display
• Easy to store with a foldable display in the housing
• Freshwater/saltwater compatible

Specifications

• Range: 300m (variable depending on the environment)
• Depth capability: 30m (100ft)
• Radio frequency: 2.4GHz
• RF chain: 20
• RC power: 20dBm
• Sonar frequency: 115kHz
• Sonar Beam Angle: 60 degrees @-10db
• Display size: 4.3″ TFT LCD Sunlight Viewable
• Resolution: 480 x 272 pixels – 65,536 color
• Sonar unit size: 15.3cm x 11cm x 4.4cm
• Portable Case size: 26.2cm x 15cm x 9.8cm
• Operating temperature: -10°C and +50°C
