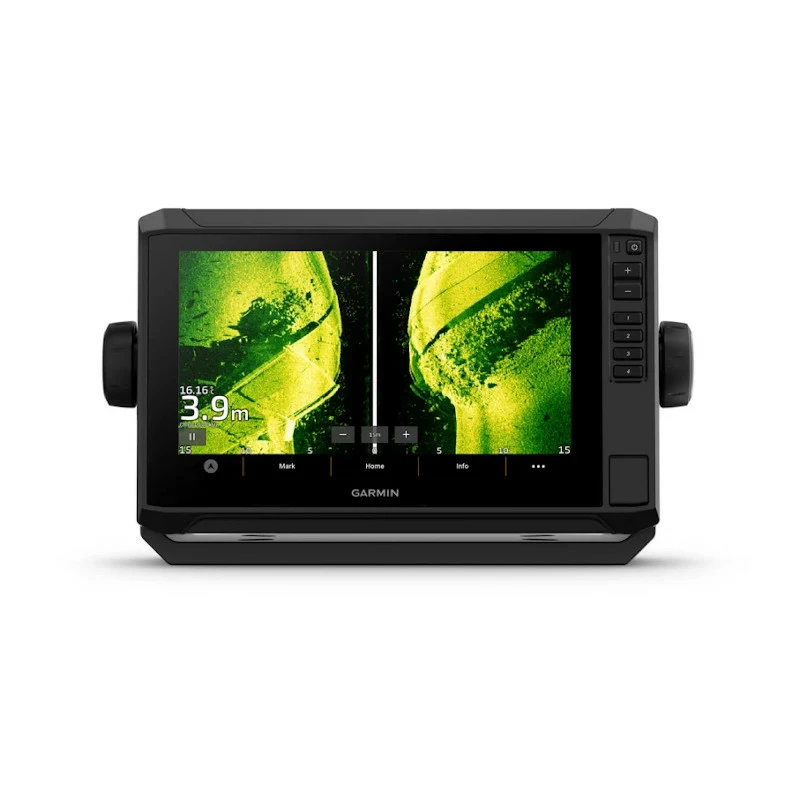

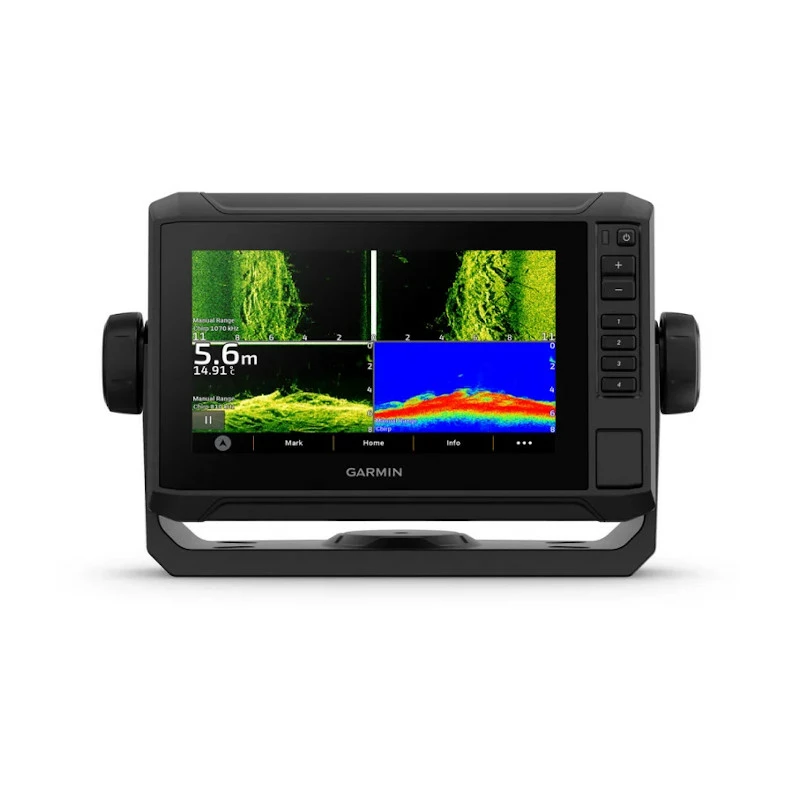

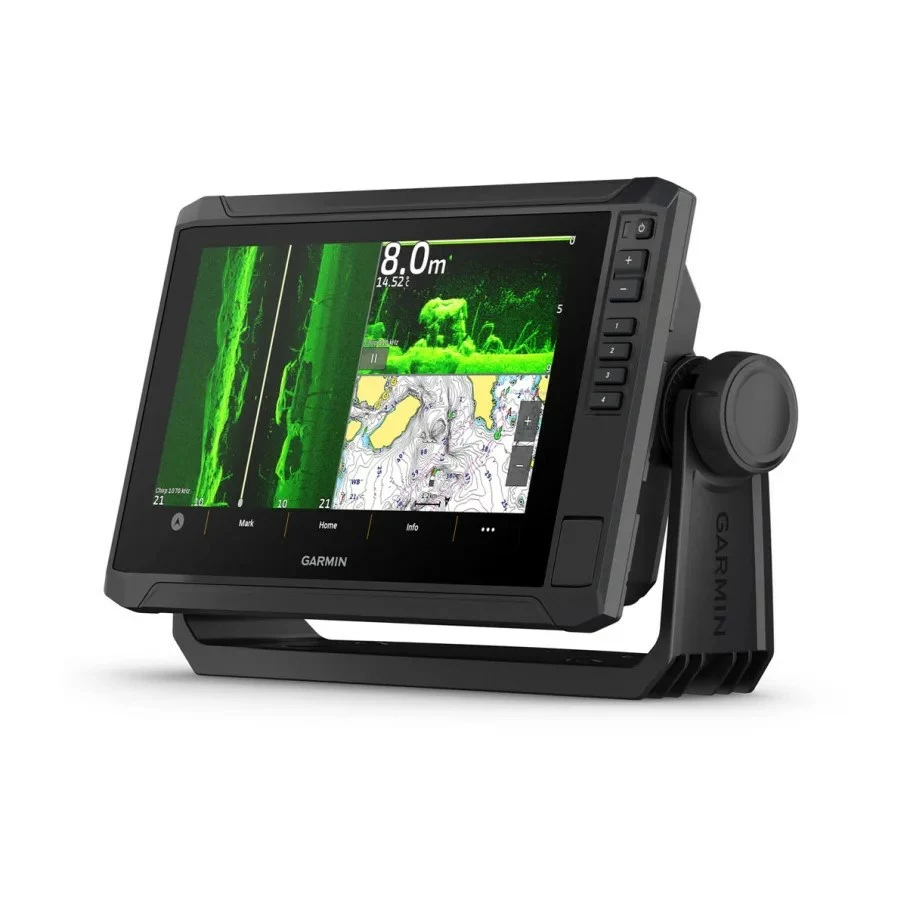

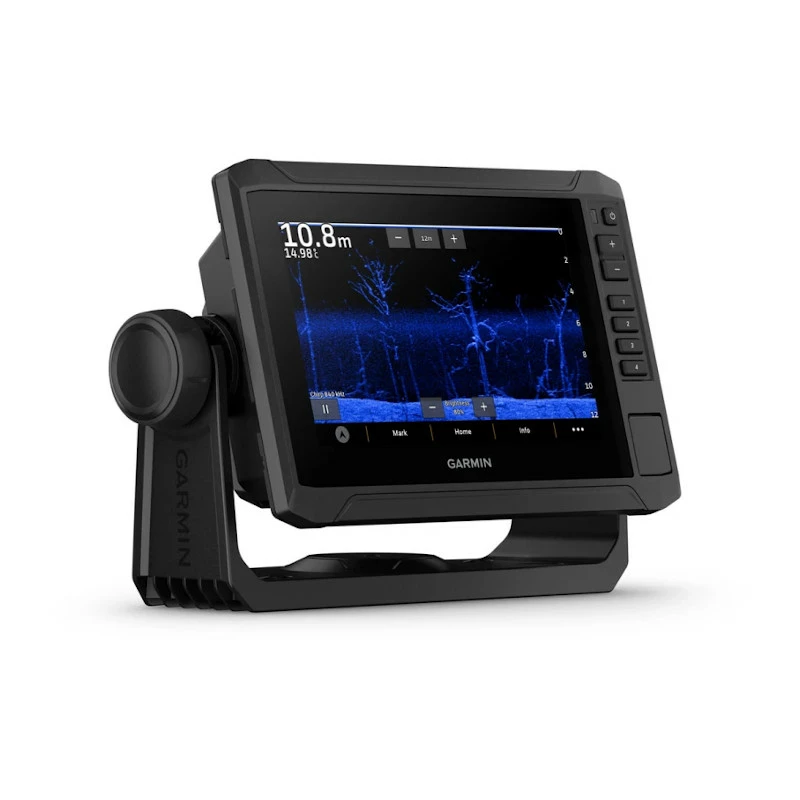

Garmin Echomap UHD2 Touchscreen Chartplotters

The Garmin Echomap UHD2 Chartplotter Fish Finders bring touchscreen with key assist to this popular range of chartplotters. A crystal clear bright easy to read display, available in 6, 7 and 9 inch sizes and compatible with Garmin’s traditional,  ClearVu and Sideview scanning sonars. They come pre-loaded ready to go with Garmin Navionics, offering charts for UK, Irish and Dutch waters. This information is outputted on screen in a dazzling array of crisp colours that make map reading easier. The display also gives incredible detail when viewing the scanning sonar feedback. With additional features like super accurate multi-band GPS, and a number of software extras. This really is a top of the range display that gets the very best from your sonar transducer.

Please note these units are sold without the necessary transducer required for use

Features

• Easy-to-use keyed-assisted touchscreen
• Compatible with Garmin traditional, ClearVü™, SideVü™ & LiveScope™
• Garmin Navionics+™ cartography for U.K., Ireland, and the Netherlands
• Wi-Fi® connectivity – share data with another ECHOMAP UHD2 chartplotter
• Multi-band, multiple frequency GPS for improved position accuracy
• Supports wired NMEA 2000® network connectivity
• Use the ActiveCaptain® app for OneChart™ features and software updates
• Wirelessly connects to Force® Trolling Motor for management of routes, waypoints, speed control and battery life

Specifications

• Material – Polycarbonate plastic
• Water rating – IEC 60529 IPX71
• Temperature range – From -20° to 55°C (from -4° to 131°F)
• Clearance to nearest obstruction behind chartplotter – 118 mm (45/8 in.)
• Input voltage – From 9 to 18 Vdc
• Fuse – 3 A, fast-acting (included)
• Memory card – 1 microSD® card slot; 32 GB max. card size
• Wireless frequency – 2.4 GHz @ 18.7 dBm maximum
• Sonar frequencies
•           Traditional L, M, H CHIRP: 50/77/83/200 kHz
•           Garmin ClearVü™ CHIRP: 260/455/800/1000/1200 kHz
•           Garmin SideVü™ CHIRP: 260/455/800/1000/1200 kHz
• Sonar transmit power (RMS)
•           CHIRP – 500 W
•           Garmin ClearVü™ and Garmin SideVü CHIRP: 500 W
• Sonar depth – 701 m (2,300 ft.) at 77 kHz

Pack includes

• ECHOMAP UHD2
• 12-pin sounder to 8-pin transducer cable
• Power cable
• Tilt/swivel mount with quick release cradle
• Protective cover
• Hardware
• Documentation
